TocaEdit Xbox 360 Controller Emulator

Top Devices of All Time in x360ce Database
Top Devices of All Time in x360ce Database
Google Adsense Advertisement
710,301 - Generic USB Joystick
342,010 - Twin USB Joystick
120,018 - XBOX 360 For Windows
86,671 - USB JOYSTICK
82,353 - USB GAMEPAD
79,781 - Wireless Controller
53,509 - Bluetooth Gamepad
48,140 - USB WirelessGamepad
46,580 - PLAYSTATION(R)3 Controller
43,562 - Logitech Dual Action
40,913 - USB Vibration Joystick (BM)
32,940 - XBOX One For Windows
32,019 - Xbox 360 Wireless Receiver for Windows
26,804 - Logitech RumblePad 2 USB
22,122 - Logitech Cordless RumblePad 2
18,926 - PC Game Controller
18,483 - vJoy Device
16,011 - Wireless Gamepad
15,329 - PS(R) Gamepad
13,563 - VJoy Virtual Joystick

XBOX 360 For Windows

Microsoft • XBOX 360 Controller For Windows (2005)

Buttons (10) and Axes (5):

Axes: 0(Min)-32767(Center)-65535(Max)

LSB = Left Stick Button = Axis 0-X (0-65535), Axis 1-Y (0-65535), Button 8
RSB = Right Stick Button = Axis 3-XR (0-65535), Axis 4-YR (0-65535), Button 9

LT = Left Trigger (Axis 2-Z(32767-65535)
RT = Right Trigger (Axis 2-Z (32767-0)

LB = Left Bumper = Button 4
RB = Right Bumper = Button 5

A = Button 0
B = Button 1
X = Button 2
Y = Button 3

D-Pad / POV (Point of View) = Top (0), Right (9000), Bottom (18000), Right (27000)

View (Back) = Button 6
Menu (Start) = Button 7

Non-Gaming Buttons (2):

• XBOX
• Wireless pairing button

Connectivity:

• Wireless (2.4 GHz RF)
• USB Adapter-Cable
• 2.5 mm headset jack

PLAYSTATION(R)3 Controller

Sony • PlayStation 3 Controller (1997)

2 Analog sticks

10-bit precision

13 Digital buttons

Triangle, Circle, Cross, Square, L1, R1, L2, R2, L3, R3, Start, Select, Analog
Digital directional buttons

Connectivity

PlayStation (2) controller port

How to use a PS3 controller on PC

You must install "Sony PlayStation Now" software, which will install correct drivers, for buttons and axis to work properly:

https://www.playstation.com/en-gb/explore/playstation-now/ps-now-on-pc

XBOX One For Windows

Microsoft • XBOX One Controller For Windows (2013)

Buttons (10) and Axes (5):

Axes: 0(Min)-32767(Center)-65535(Max)

LSB = Left Stick Button = Axis 0-X (0-65535), Axis 1-Y (0-65535), Button 8
RSB = Right Stick Button = Axis 3-XR (0-65535), Axis 4-YR (0-65535), Button 9

LT = Left Trigger (Axis 2-Z(32767-65535)
RT = Right Trigger (Axis 2-Z (32767-0)

LB = Left Bumper = Button 4
RB = Right Bumper = Button 5

A = Button 0
B = Button 1
X = Button 2
Y = Button 3

D-Pad / POV (Point of View) = Top (0), Right (9000), Bottom (18000), Right (27000)

View (Back) = Button 6
Menu (Start) = Button 7

Non-Gaming Buttons (3):

• XBOX
• Wireless pairing button
• Share button (2020 revision)

Force Feedback Motors (4):

1 big (BL), 1 medium (BR), 2 small (TL,TR)

Connectivity:

• Wireless (5 GHz RF). Max operating distance 5 m
• Micro USB
• 3.5 mm stereo audio jack (2nd revision)
• Bluetooth 4.0 (3rd revision)
• USB-C (Elite Series 2)

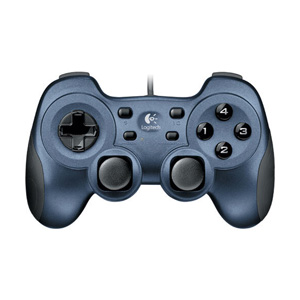

Logitech RumblePad 2 USB

Logitech • RumblePad 2 USB F310

Buttons (10) and Axes (5):

Axes: 0(Min)-32767(Center)-65535(Max)

LSB = Left Stick Button = Axis 0-X (0-65535), Axis 1-Y (0-65535), Button 8
RSB = Right Stick Button = Axis 3-XR (0-65535), Axis 4-YR (0-65535), Button 9

LT = Left Trigger (Axis 2-Z(32767-65535)
RT = Right Trigger (Axis 2-Z (32767-0)

LB = Left Bumper = Button 4
RB = Right Bumper = Button 5

A = Button 0
B = Button 1
X = Button 2
Y = Button 3

D-Pad / POV (Point of View) = Top (0), Right (9000), Bottom (18000), Right (27000)

Back = Button 6
Start = Button 7

Non-Gaming Buttons (2):

• Logitech
• Mode
• DirectInput / XInput

Connectivity:

• USB Cable

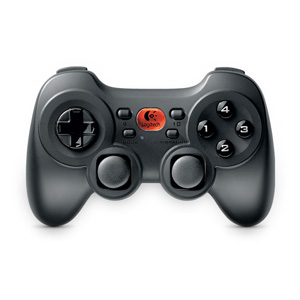

Logitech Cordless RumblePad 2

Logitech • RumblePad 2 Wireless F710

Buttons (10) and Axes (5):

Axes: 0(Min)-32767(Center)-65535(Max)

LSB = Left Stick Button = Axis 0-X (0-65535), Axis 1-Y (0-65535), Button 8
RSB = Right Stick Button = Axis 3-XR (0-65535), Axis 4-YR (0-65535), Button 9

LT = Left Trigger (Axis 2-Z(32767-65535)
RT = Right Trigger (Axis 2-Z (32767-0)

LB = Left Bumper = Button 4
RB = Right Bumper = Button 5

A = Button 0
B = Button 1
X = Button 2
Y = Button 3

D-Pad / POV (Point of View) = Top (0), Right (9000), Bottom (18000), Right (27000)

Back = Button 6
Start = Button 7

Non-Gaming Buttons (2):

• Logitech
• Mode
• Vibration
• DirectInput / XInput

Force Feedback Motors (2):

1 big (BL), 1 medium (BR)

Connectivity:

• Wireless USB Receiver (2.4 GHz)
