TocaEdit Xbox 360 Controller Emulator

Controller Steering HOTAS Mouse Keyboard
Intro

Hardware we use or like.

Banner
Google Adsense Advertisement

Controller

precision and Quality Test • Comparison of Controllers (DirectInput)

+ BUTTONS

BEST

+ TOUCHPAD

WORST

Microsoft Xbox One (~€55) - performance, compatibility and price makes it standard choice.
Microsoft Xbox One Elite (~€150) - few more buttons, adjustable triggers, sliding rings on sticks... but precision is not better than XONE.
Sony PlayStation 5 (~€75) - touch pad, sliding rings on sticks, predictable axis increments.
Logitech F310 (~€26) - poor precision and quality.

Measured axes and buttons in 0.01 mm steps (Graph Bottom) • Gram-force resolution 0.2 (Graph Left) • Controller value (Graph Right)

MICROSOFT ELITE • XONE LOGITECH F310 SONY PS5
View B6 (0-1) Back B6 (0-1) Share B8 (0-1)
Menu B7 (0-1) Start B7 (0-1) Options B9 (0-1)
POV T P0 (-1 to 0)
POV R P0 (-1 to 9000)
POV B P0 (-1 to 18000)
POV L P0 (-1 to 27000)
A B0 (0-1) S B0 (0-1)
B B1 (0-1) X B1 (0-1)
X B2 (0-1) C B2 (0-1)
Y B3 (0-1) T B3 (0-1)
Bumper L B4 (0-1)
Bumper R B5 (0-1)
Trigger L A2 (32767-65408)=(±128)(0-255) Trigger L A3 (0-65535)=(±256)(0-256) B6 (0-1)
Trigger R A2 (32767-128)=(±128)(0-255) Trigger R A4 (0-65535)=(±256)(0-256)B7 (0-1)
Stick Button L B8 (0-1) Stick Button L B10 (0-1)
Stick Button R B9 (0-1) Stick Button R B11 (0-1)
Stick L Axis H A0
Stick L Axis V A1
Stick R Axis H A3 (0-32767-65535)(2-568, average 80.6)(0~813) (±257)(0-255) Stick R Axis H A2(0-32767-65535)=(±256/260)(0-256/252)
Stick R Axis V A4 (0-32767-65535)(2-568, average 80.6)(0~813) (±257)(0-255) Stick R Axis V A5(0-32767-65535)=(±256/260)(0-256/252)
Touch Pad Button B13 (0-1)

STICK AXIS

Each graph line represents half range (32767-0) (128~0) • (32767-65535) (128~256).

ELITE and XONE values jumps in variable 2-568 increments. Average jump size 80.6 (0~407).
PS5 values jumps in 256/260 increments (0-128/0-126).
LOGI values jumps in 257 increments (0-128). LOGI values jumps not only in 257, but in 514 increments sometimes.

Value jumps of all controllers are not equally distributed.

TRIGGER AXIS

Each graph line represents full range (0~256).

ELITE and XONE values jumps in 128 (32767-65408 • 32767-128) increments (0-255).
PS5 values jumps in 256 (0-65535) increments (0-256).
LOGI values jumps in 128 (32767-65408 • 32767-128) increments (0-255). LOGI values jumps not only in 128, but in 256 increments sometimes.

Value jumps of all controllers are not equally distributed.

BUTTONS

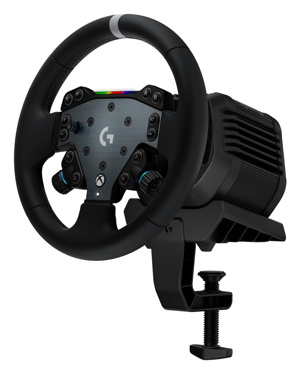

Steering

Steering

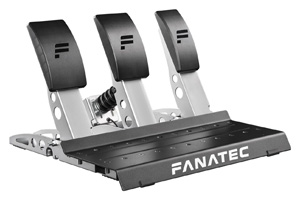

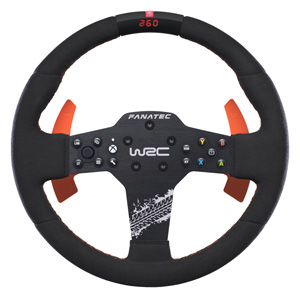

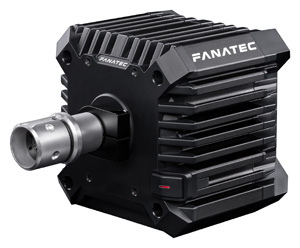

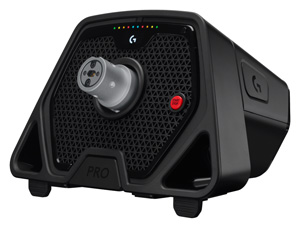

1. BEST - DIRECT Drive (~€600+) • FanatecSimxperience, Simucube
2. AVERAGE - BELT Drive (~€400+) • Thrustmaster
3. WORST - GEAR Drive (~€250+) • Logitech

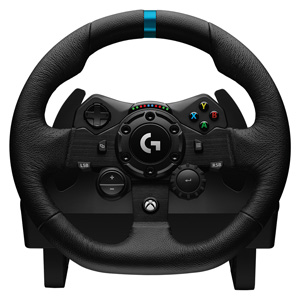

LogitechG920 Racing Wheel and PedalsG920 Driving Force Shifter

G920 Driving Force Wheel:

• 900-degree steering
• Dual-motor force feedback

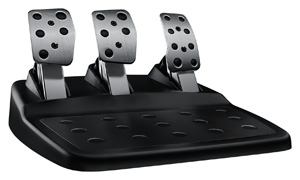

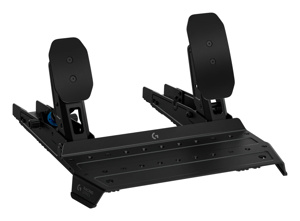

• Throttle, brake and clutch pedals
• Helical gearing with anti-backlash
• Hall-effect steering sensor
• Real leather
• Stainless steel

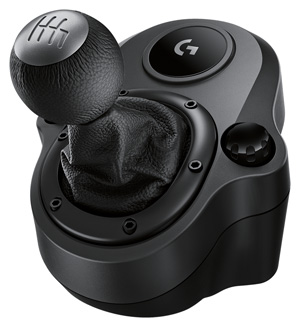

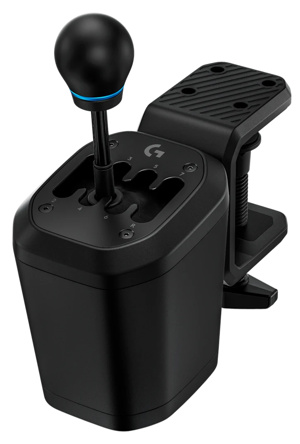

G920 Driving Force Shifter:

• Designed to work with G29/G920 Driving Force Racing Wheels
• Six speeds with push-down reverse gear
• Steel and leather components for comfort and durability
• Mounts securely to a racing rig

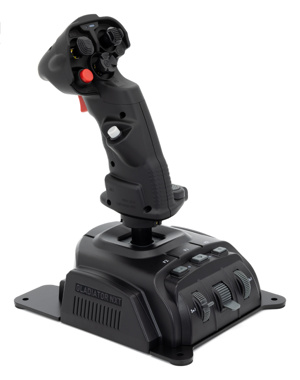

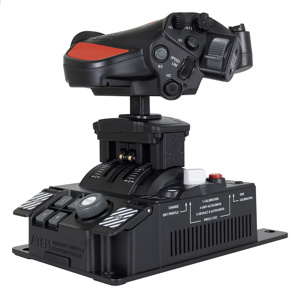

HOTAS

HOTAS

LogitechCHVKB-SIMVIRPIL

CHFighterstick USB

• 3 axis and 24 buttons
X, Y and Z for aileron, elevator and throttle control
3 push buttons, 3 4-way hat switches, 1 8-way POV hat switch, 1 mode switch button
• Total of 128 programmable functions with Control Manager software
• 3 color mode indicator LED's on base
• Stylized F-16 handle
• Dual rotary trim wheels for precise adjustment of ailerons and elevators
• Side throttle wheel
• Large, sturdy base with non-slide feet
• Plug and Play driverless USB installation with 7 foot USB cable for both PC and Macintosh
• Compatible with Windows 98, 2000, XP, Vista, 7, 8 and Mac OSX

CHPro Throttle USB

• 3 axis and 24 buttons
X and Y axis on miniature joystick and Z axis on accurate throttle sliding motion
3 push buttons, 1 mode switch button, 3 4-way directional hat and 1 8-way POV hat switch
• Total of 176 programmable functions with Control Manager software
• 3 color mode indicator LED's on base
• Ergonomic left handed H.O.T.A.S. design with forward and back slide motion
• Large, sturdy base with non-skid feet
• Plug and Play driverless USB installation with 7 foot USB cable for both PC and Macintosh
• Compatible with Windows 98, 2000, XP, Vista, 7, 8 and Mac OSX

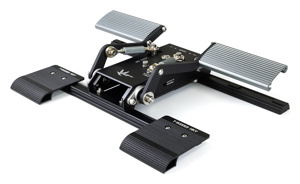

CHPro Pedals USB

• 3 axis of control
X and Y axis for left and right toe brake control and Z axis for self centering sliding mechanism for rudder control
• Realistic heel-toe differential brake control
• Locking rudder axis for gas/brake emulation for racing games
• Large, sturdy base with 7 foot USB cable
• Plug and Play driverless USB installation for both PC and Macintosh
• Compatible with Windows 98, 2000, XP, Vista, 7, 8 and Mac OS

Mouse

Mouse

LogitechG604 Lightspeed

15 programmable buttons
Sensor: HERO™ 16K
Resolution: 100 – 16,000 DPI
Zero smoothing/acceleration/filtering
LIGHTSPEED Wireless report rate: 1000 Hz (1ms)
1 AA rechargeable battery
Bluetooth report rate: 88-133 Hz (7.5-11.25 ms)
LIGHTSPEED mode: up to 240 hours (non-stop gaming)
Bluetooth mode: up to 5.5 months (standard usage)
Dual mode hyper-fast scroll wheel
Onboard memory
Mechanical Button Tensioning System

Keyboard

Keyboard

LogitechMX KEYS

Actuation distance: 1.3 mm
Total travel distance: 1.8 mm (Source)

• Connect via the included USB receiver or Bluetooth low energy technology.
• Easy-switch keys to connect up to three devices and easily switch between them.
• 10 meters wireless range.
• Hand proximity sensors that turn the backlighting on.
• Ambient light sensors that adjust backlighting brightness.
• USB-C rechargeable. Full charge lasts 10 days – or 5 months with backlighting off.
• On/Off power switch.
• Caps Lock and Battery indicator lights.
• Compatible with Logitech Flow enabled mouse.
